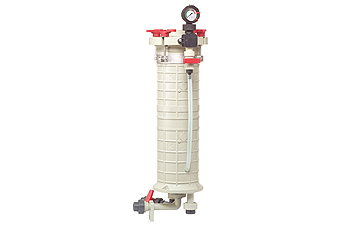

• FX-204
Model No.: FX-204


1. One piece injected without welding of filter body are adopted the integrative mould and increase the
    intensity of the barrel body with the projection rib.

2. According to density and temperature of chemical solution to inject the pump body. The material of
    filter body is PP, CPVC, or PVDF.

3. Thanks to the least welds of filter in filter field, it greatly decreases the leakage.

4. Excellent application to circulated filtering operations for plating liquid, chemical liquid and pure water.

5. According to customer’s requirement, various filter elements for choice and easy to operate: Lock
    core filter, Pressure core filter, Pressure Layered Core Filter, Bag Filter, Paper Filter, and Bellow Filter.

6. Titanium (Ti) clamp set also can be provided as choice.

7. Purchase accessories: union or flange (including packing and PVC screws), switch (including guard),
    foot valve, check valve, flow-seeing tube, in/outlet flexible, or filter bag, etc
