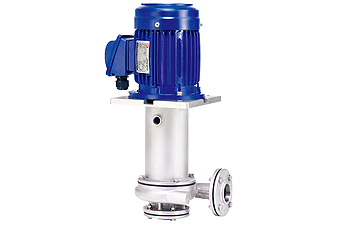

FEATURES

1. Pumps are cast precisely in stainless steel 316 so that the surface of pumps looks glossy.

2. For all kinds of acid/alkaline solutions, circulating and high temperature assistance.

3. Pumps are no damaged in dry running because of seal-less design, the pumps also are design
    with vapor seal o-ring and diversion groove.

4. Dry vapor seal ensure to prevent pumps and bearings from being etched by chemical gas and
    prolong the using lift of pump.

5. After the correction of dynamical balance, impellers are lower noise and vibrating rate.

6. The volume of pump is so small that it applies to inside and outside of tank.

MODEL INDENTIFICATION

KDS
-
25
-
VK
-
1/2
-
6
-
N
-
S
1

2

3

4

5

6

7
1.MODEL: KDS
2.IN-OUTLET: 40-1.5” 50-2”
3.SPECIFIC WEIGHT: VK-1.1 VP-1.4
4.POWER: 1/2, 1, 2, 3, 5HP
5.FREQUENCY: 5-50Hz 6-60Hz
6.RUBBER: N-NBR E-EPDM V-VITON T-PTFE
7.MATERIAL: S-SUS316

SERIES SPECIFICATION

MODEL CURVENO IN-OUTLET(mm) HP FLOW(L/Min) HEAD(M) WEIGHT(kg)
IN OUT VK VP VK VP
Frequency:50Hz
KDS-25VK-1/2 N 25 25 1/2 90 - 13 - 28
KDS-40VK(P)-15 O 40 40 1 240 210 13 11 30
KDS-40VK(P)-25 P 40 40 2 300 260 15 14 48
KDS-50VK(P)-35 Q 50 50 3 400 300 20 17 50
KDS-50VK(P)-55 R 50 50 5 480 420 28 22 55
Frequency:60Hz
KDS-25VK-1/2 n 25 25 1/2 80 - 14 - 28
KDS-40VK(P)-16 o 40 40 1 260 160 15 11 30
KDS-40VK(P)-26 p 40 40 2 300 260 17 14 48
KDS-50VK(P)-36 q 50 50 3 350 300 26 19 50
KDS-50VK(P)-56 r 50 50 5 500 450 28 25 55

PERFORMANCE CURVE CHART

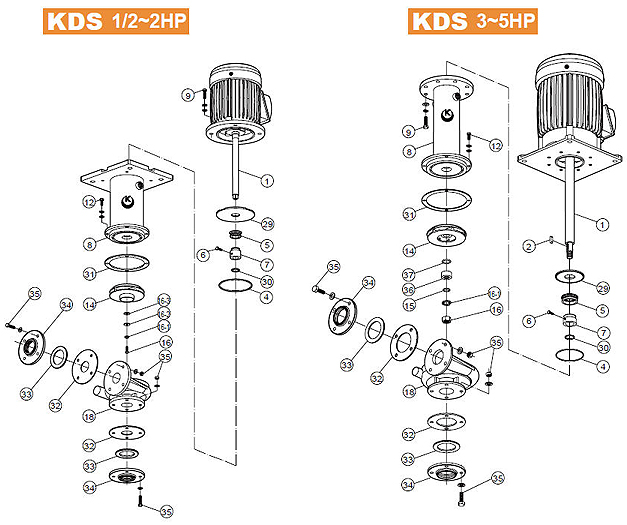

CONSTRUCTION

NODESCRIPTIONMATERIALNODESCRIPTIONMATERIAL
1 Motor FC / AL 16-2 Impeller Nut Packing TEFLON
2 Shaft Key SUS 16-3 Impeller Nut Washer SUS
4 Vapor Seal O-ring NBR/EPDM/VITON 18 Front Cover SUS
5 Vapor Seal NBR/EPDM/VITON 29 Vapor Seal Seat SUS
6 Shaft Sleeve Screw SUS 30 Shaft Sleeve O-ring VITON
7 Shaft Sleeve SUS 31 Main Body Gasket EPDM/VITON/PTFE
8 Main Body SUS 32 Flange Packing EPDM/VITON
9 Main Body Screw SUS 33 Flange Gasket PTFE
12 Front Cover Screw SUS 34 Flange SUS
14 Impeller SUS 35 Flange Fasten Bolt SUS
15 Impeller Nut O-ring NBR/EPDM/VITON 36 Impeller fixed sleeve SUS
16 Impeller Nut SUS 37 Impeller fixed sleeve O-ring EPDM/VITON/PFA
16-1 Impeller Nut Spring Washer SUS

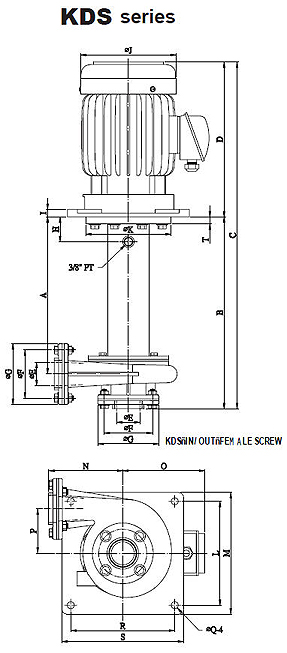

DIMENSION DRAWING

MODEL DIMENSION
KDS-25VK-1/2 A B C D E F G H I J
235 300 536 236 25 64 78 53 12 175
K L M N O P Q R S T
  180 235 119 150 62 15 150 235 15
KDS-40VK(P)-1 A B C D E F G H I J
238 305 539 234 40 91 120 51 12 175
K L M N O P Q R S T
  180 235 140 150 70 15 180 235 16
KDS-40VK(P)-2 A B C D E F G H I J
238 305 539 234 40 91 120 51 12 175
K L M N O P Q R S T
  180 235 140 150 70 15 180 235 16
KDS-50VK(P)-3 A B C D E F G H I J
336 410 741 331 50 103 130 53 16 204
K L M N O P Q R S T
182 222 260 158 175 95 15 222 260 16
KDS-50VK(P)-5 A B C D E F G H I J
336 410 778 368 50 103 130 53 16 234
K L M N O P Q R S T
182 222 260 158 182 95 15 222 260 16
